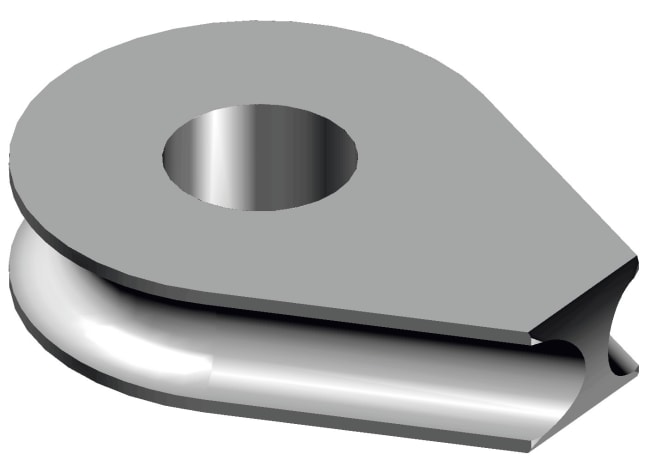

Massiv kause - K5

Massiv kause - K5

GN Rope Fittings - Grofsmederij Nieuwkoop B.V.

Massive kauser i malt stålkvalitet GGG50 for wire. Kausene kan leveres med forskjellige hulldiametere i de fleste størrelsene.

Logg inn eller registrer deg for å forespør/kjøpe produktet

Last ned datablad

Art.no.	A	B	D	E	F	H	Weight	Quantity
0140408	66 mm	40 mm	31 mm	9 mm	15 mm	14 mm	0.6 kg
0140410	82 mm	50 mm	38 mm	11 mm	18 mm	18 mm	0.29 kg
0140412	98 mm	60 mm	45 mm	13 mm	20 mm	21 mm	0.46 kg
0140414	114 mm	70 mm	53 mm	16 mm	24 mm	25 mm	0.72 kg
0140416	110 mm	75 mm	58 mm	19 mm	26 mm	30/38/40 mm	0.79 kg
0140420	130 mm	92 mm	65 mm	23 mm	30 mm	30/40/45 mm	1.3 kg
0140422	150 mm	110 mm	82 mm	26 mm	33 mm	30/40/45/55 mm	2.1 kg
0140428	180 mm	127 mm	96 mm	32 mm	40 mm	30/40/52/60 mm	3.6 kg
0140432	200 mm	140 mm	100 mm	35 mm	43 mm	30/42/55/70 mm	4.4 kg
0140436	225 mm	160 mm	122 mm	39 mm	47 mm	50/70/90/100 mm	6.2 kg
0140440	250 mm	170 mm	127 mm	43 mm	57 mm	50/70/90/100 mm	9.1 kg
0140444	300 mm	210 mm	160 mm	54 mm	69 mm	60/80/105 mm	17.0 kg
0140450	355 mm	240 mm	181 mm	61 mm	80 mm	75/110 mm	26.0 kg
0140458	431 mm	290 mm	230 mm	68 mm	92 mm	85/122 mm	46.0 kg
0140470	597 mm	387 mm	310 mm	88 mm	114 mm	130 mm	101.0 kg


Materiale	Støpt stål


Min. temp.	-20°C
Max. temp.	+200°C


Modell	K5

Image	Art.no.	For steel wire rope diameter	Size (inches)	Weight	Quantity	Sales unit:
	0140408	7 - 8 mm	2"	0.6 kg		PCS
	0140410	9 - 10 mm	2 1/2"	0.29 kg		PCS
	0140412	11 - 12 mm	3"	0.46 kg		PCS
	0140414	13 - 15 mm	3 1/2"	0.72 kg		PCS
	0140416	16 - 18 mm	4"	0.79 kg		PCS
	0140420	19 - 22 mm	5"	1.3 kg		PCS
	0140422	23 - 25 mm	6"	2.1 kg		PCS
	0140428	26 - 30 mm	7"	3.6 kg		PCS
	0140432	31 - 34 mm	8"	4.4 kg		PCS
	0140436	35 - 38 mm	9"	6.2 kg		PCS
	0140440	39 - 42 mm	10"	9.1 kg		PCS
	0140444	43 - 49 mm	12"	17.0 kg		PCS
	0140450	50 - 57 mm	14"	26.0 kg		PCS
	0140458	58 - 65 mm	17"	46.0 kg		PCS
	0140470	66 - 76 mm	24"	101.0 kg		PCS
