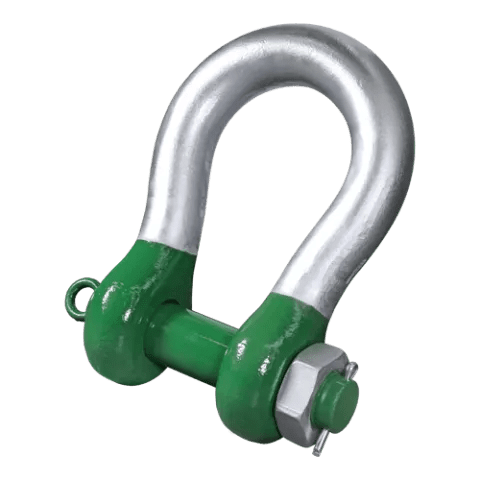

Bow shackle with safety bolt - Green Pin Polar P-6031, 120T
Art.no.: 0310620
The Green Pin Polar® Heavy Duty Shackle BN is a high load capacity bow shackle with a safety bolt that has been optimized for use in low temperatures. The shackle can be used in extreme climatic conditions, down to -40°C (-40°F). The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. The Green Pin Polar® Heavy Duty Shackle BN is suitable for both one-leg systems and multi-leg systems.
incl. VAT
Log in or register to enquire or purchase products.
| Color | Green, Silver |
| Weight | 110.0 kg |
| Material | Grade 8 |
| Surface treatment | Hot-dip galvanized |
| Min. temp. | -40°C |
| Max. temp. | +200°C |
| WLL | 120.0 T |
| Model | P-6031 |
| Brand | Green Pin |
| HS code | 73159000 |
| COO | NLD |
| Sales unit: | PCS |
| Master packaging (pcs) | 0 |
| Measurements | |
|---|---|
| a | 95 mm |
| b | 95 mm |
| c | 204 mm |
| d | 95 mm |
| e | 147 mm |
| f | 400 mm |
| g | 238 mm |
| h | 644 mm |
| i | 453 mm |
| j | 428 mm |
| k | 50 mm |
