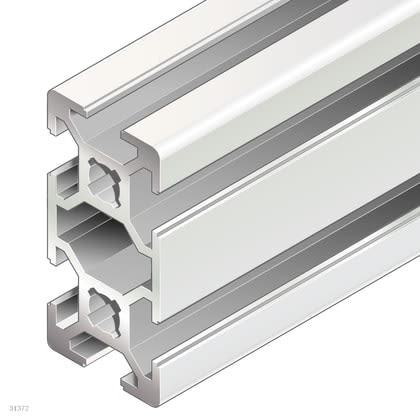

Strut profile 20x40 3mtr
Art.no.: 2401-3842992891
Durable and lightweight strut profile from rexroth with 6 mm slot, ideal for light constructions such as supports, laboratory setups, and enclosures. The 20x40 profile offers excellent stability and reinforcement options.
incl. VAT
Log in or register to enquire or purchase products.
REXROTH strut profile 20x40 mm with 6 mm slot is designed for flexible and lightweight constructions. Profiles 20x40 and 20x60 are especially suitable for reinforcement, while the 20x40x40 variant is perfect for building display cabinets, flow racks, and enclosures. Supplied in 3-meter length.
| Color | Natural |
| Material | Aluminum, anodized |
| Brand | rexroth |
| HS code | 76042100 |
| COO | - |
| Sales unit: | PCS |
| Master packaging (pcs) | 24 |
| Modular dimension | 20 mm |
| Profile type | Standard |
| Moment of torsion resistance [Wt] | 0.91 cm³ |
| Profile surface [A] | 2.9 cm² |
| Mass [m] | 0.8 kg/m |
| Length [L] | 3000 mm |
| Dimensions | 20x40 |
| Cross-section | 20x40 |
| Profile slot | 6 |
| Torsional moment of inertia [It] | 0.68 cm⁴ |
| Open slots | 6 |
| Area moment of inertia in x-direction [lx] | 4.6 cm⁴ |
| Area moment of inertia in y-direction [ly] | 1.2 cm⁴ |
| Moment of resistance in the y-direction [Wy] | 2.5 cm³ |
| Moment of resistance in the x-direction [Wx] | 1.4 cm³ |
